Linux Operating System

This guide explains how to install and configure WireGuard on Linux (deb-based) to connect to the Helium VPN Server.

Installation Steps​

  1. Install WireGuard using the following command:
    sudo apt install wireguard

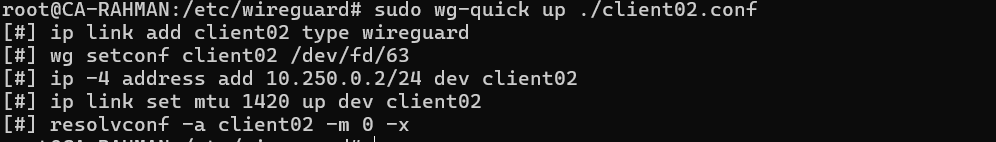

  2. Open a terminal and run the following command to bring up the tunnel:
    sudo wg-quick up ./<CLIENT_FILE>

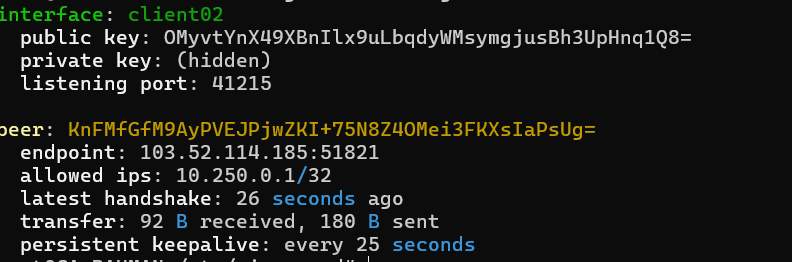

    Start wireguardStart wireguard

Enable IPv4 Forwarding​

  1. Enable IPv4 forwarding

    Enable IPv4 Forwarding (Temporary):

    To enable IPv4 forwarding temporarily (until the next reboot), run the following command:

    sudo sysctl -w net.ipv4.ip_forward=1

    Enable IPv4 forwarding (Permanent):

    To make the change persistent across reboots, you need to edit a configuration file, typically /etc/sysctl.conf or a file in /etc/sysctl.d/:

    • Open the configuration file using a text editor, such as nano or vim:
      sudo nano /etc/sysctl.conf
    • Add or uncomment the following line:
      net.ipv4.ip_forward=1
    • Save the file and exit the text editor
    • Apply the changes using the following command:
      sudo sysctl -p

    After these steps, your Linux system will forward IPv4 packets, functioning as a router if configured with appropriate routing rules (e.g., using iptables).

Accessing Targets on Different Servers​

  1. Accessing Targets on Different Servers within the Same Subnet

    If the target application or server is hosted on a different server but still within the same subnet, the WireGuard Server must support packet forwarding and NAT.

    Firewall Forwarding Rules

       iptables -A FORWARD -i wg0 -j ACCEPT
       iptables -A FORWARD -o wg0 -m state --state RELATED,ESTABLISHED -j ACCEPT

    These rules allow traffic from the WireGuard interface (wg0) to reach the internal network and ensure return traffic is properly forwarded back to the client.

    NAT (Masquerade) Configuration

    iptables -t nat -A POSTROUTING -s 10.250.0.0/24 -o eth0 -j MASQUERADE

    This ensures traffic originating from the WireGuard client subnet is translated correctly so responses from internal targets are routed back through the VPN tunnel.

Verification​

  1. Ensure that your server can successfully PING the following destinations:
